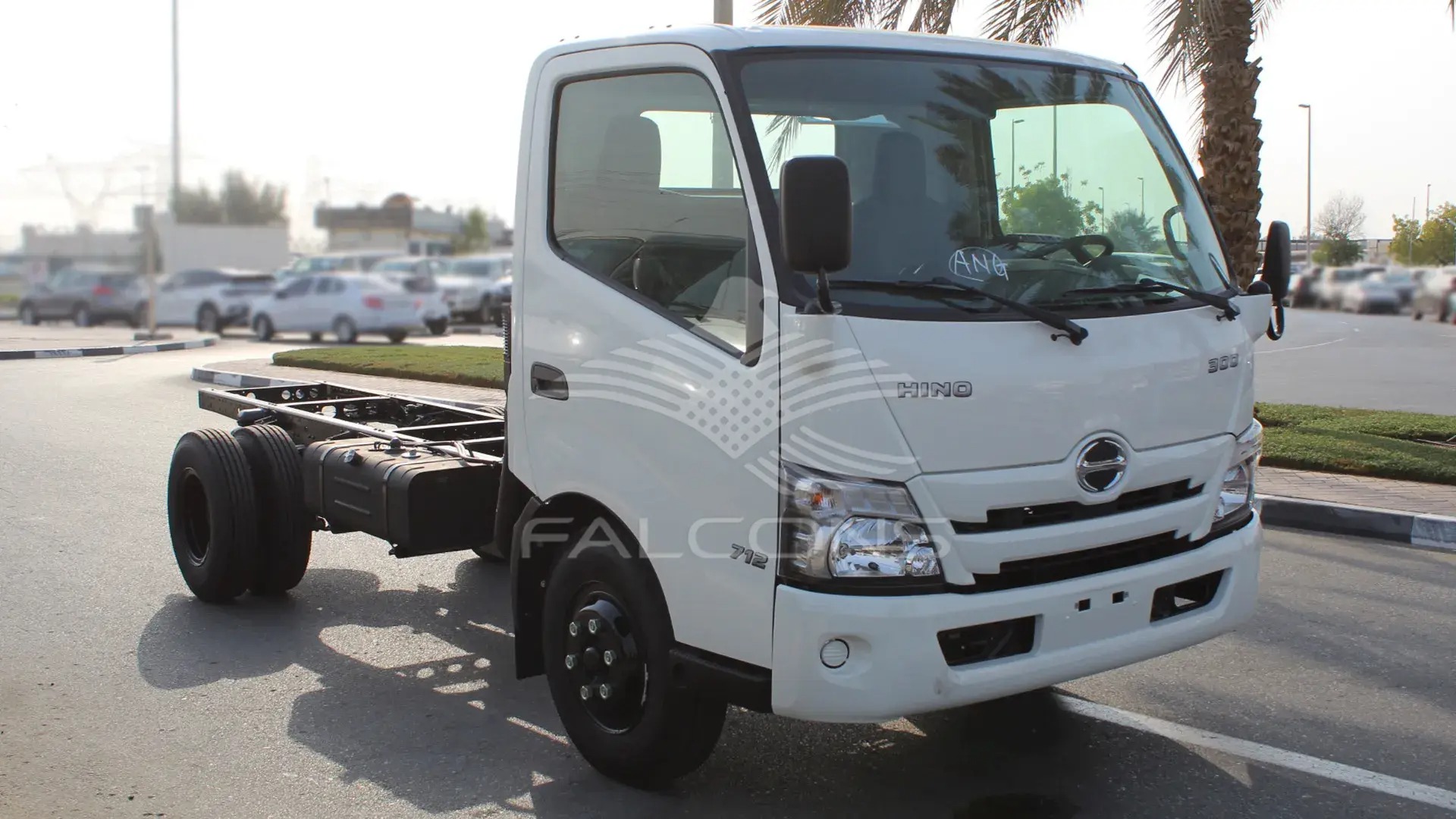

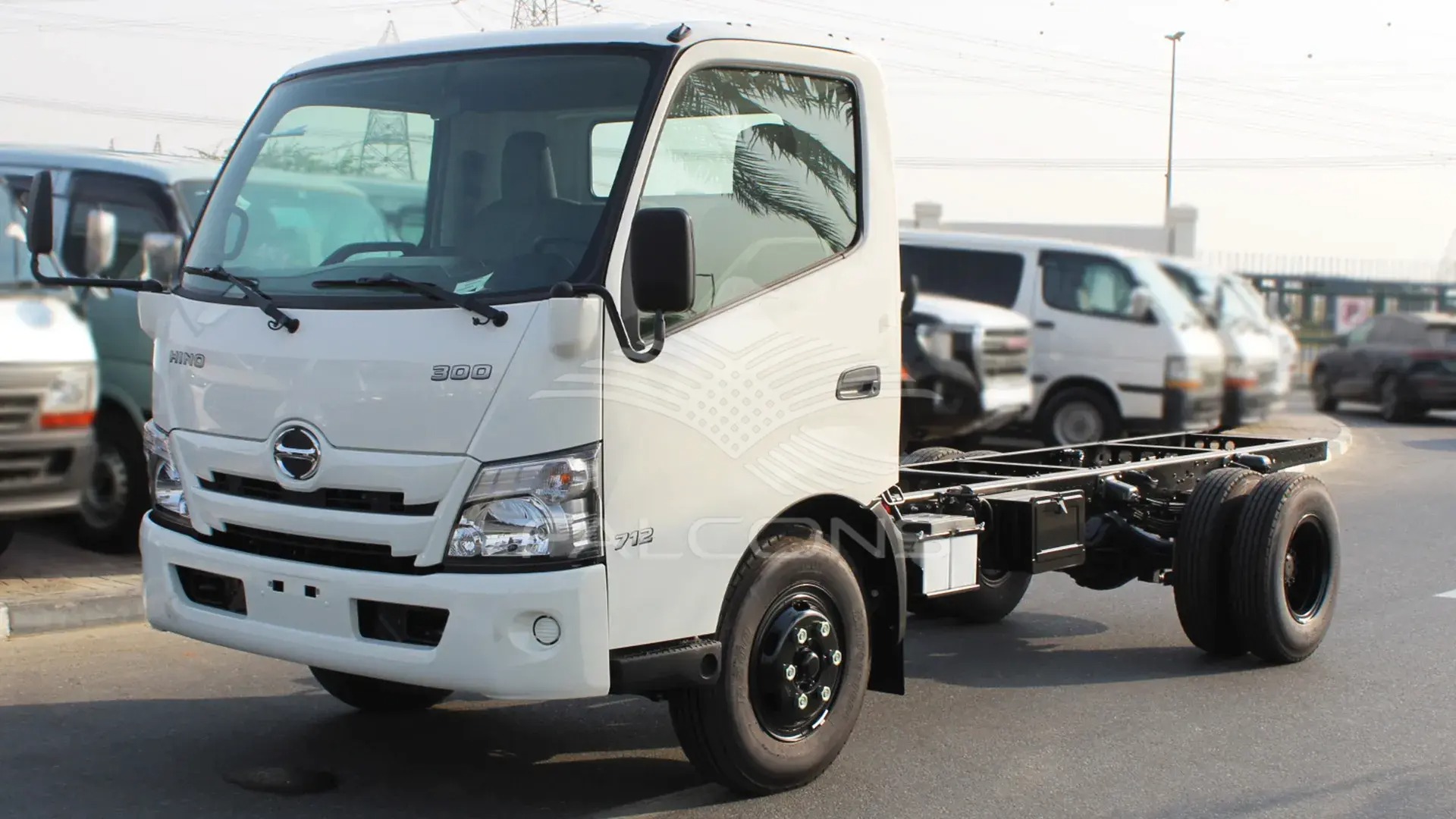

New Hino 300 2025 - Export From UAE

Technical Features:

- Dimensions (LxWxH) mm : 6,120 x 1,995 x 2,240

- Maximum power : 85 kW {116PS} at 2,500r/min (JIS Gross)

- Maximum torque : 324 Nm {33 kgfm} at 1,600 r/min (JIS Gross)

- Max. section (depth x flange x thickness) : 192.8 x 65 x 5.9 mm

- Rear frame width : 750 mm

- Tensile strength : 540 N/mm sq. (55

- kgf/mm sq.)

- Engine oil capacity : 9.4 L

- Fuel Tank Capacity : 100 L

- Wheelbase (mm) : 3,430

- Maximum engine speed : 3,000 r/min

- Max. speed (km/h) : 110

Interior Features:

- CAB Type : Forward control, all steel welded construction, high roof

- Front windshield : Heat-absorbing laminated glass

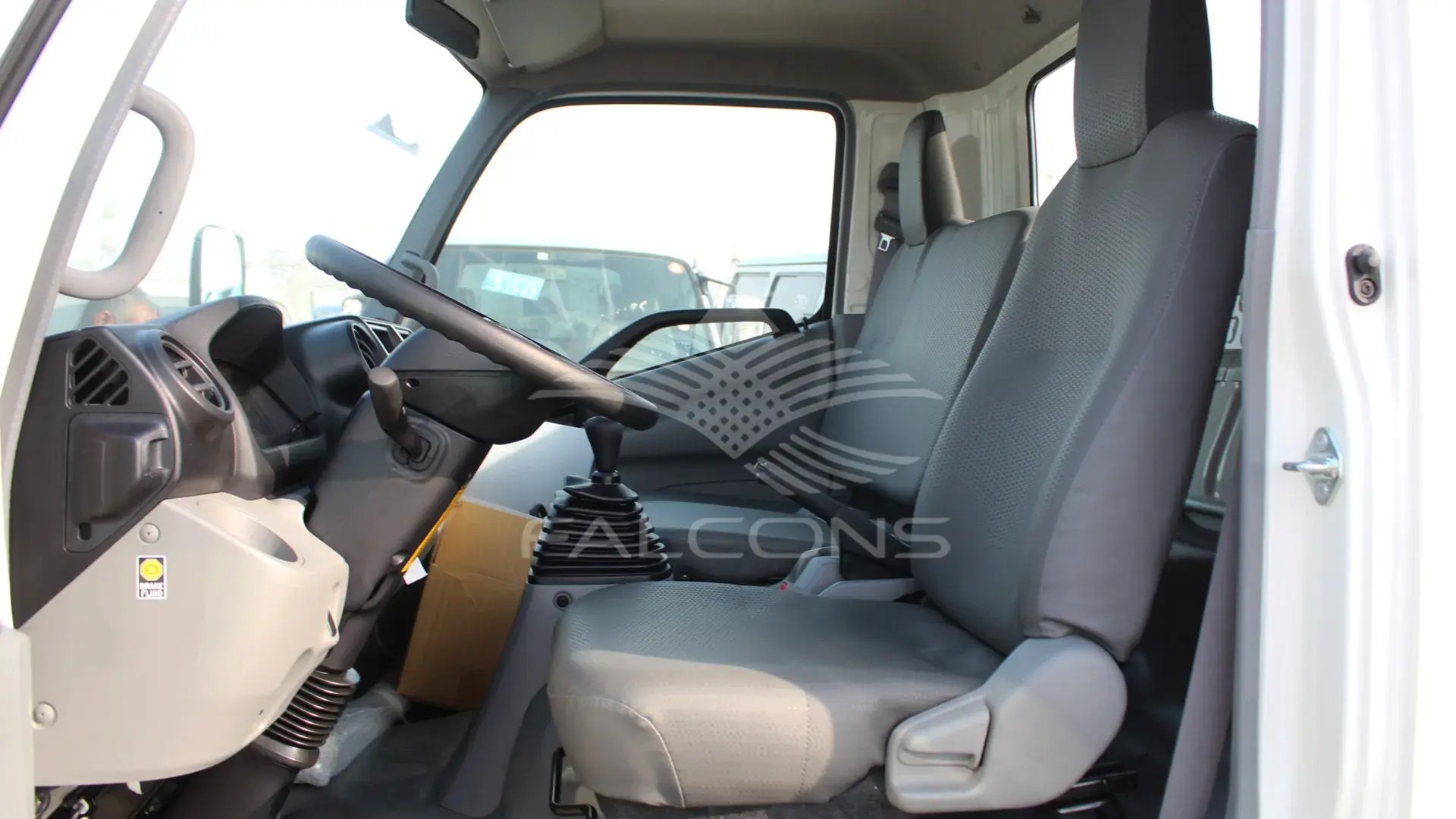

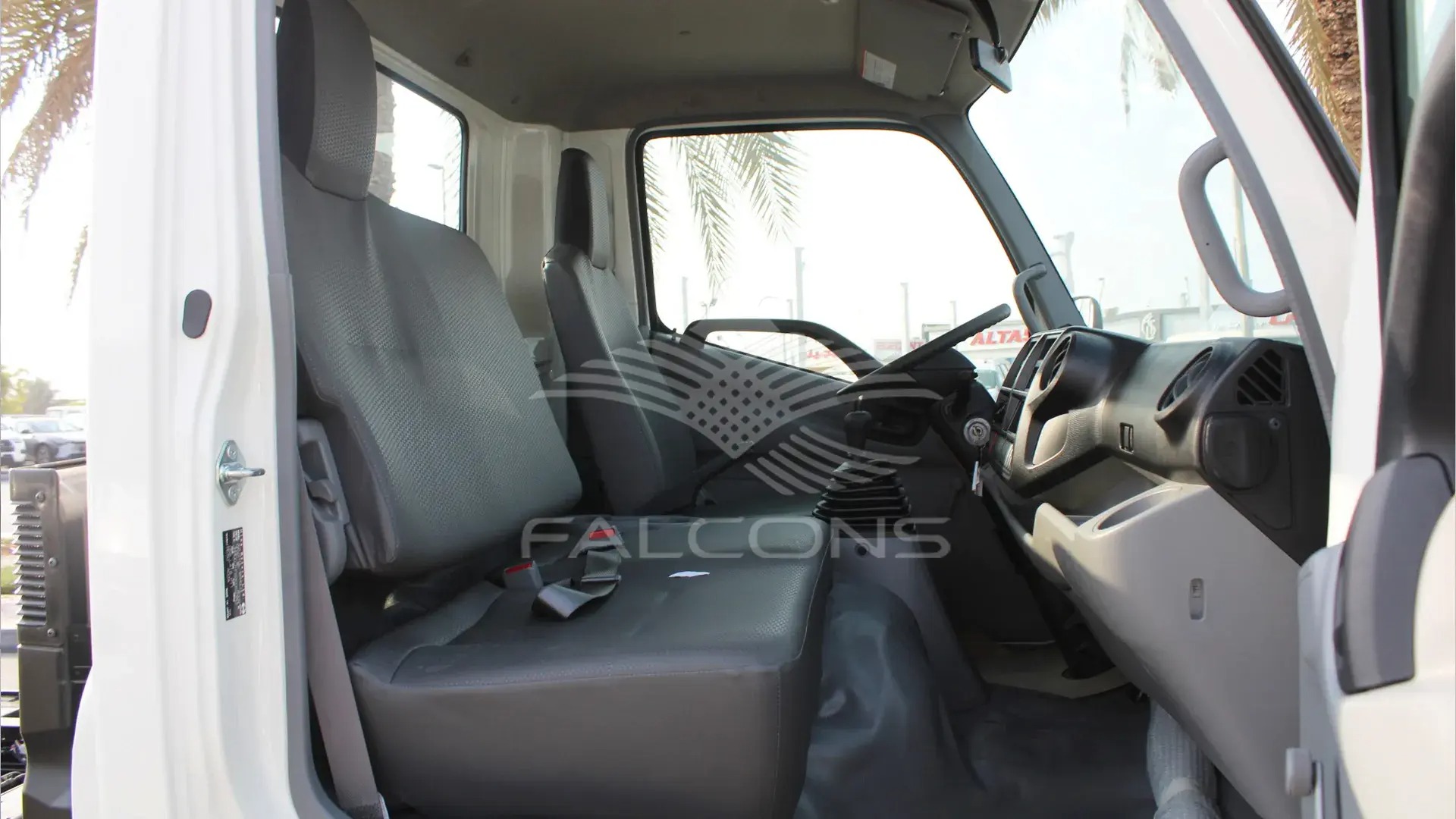

- Front seat : 4-way adjustable driver seat, fixed back passenger seat Integrated type

- Seat cover : Vinyl type

- Front seat belt : 3-point ELR (Emergency Locking Retractor) belt on driver and outer passenger seat, 2-point NR (Non Retractor) belt on center passenger seat

- Floor mat : Vinyl type

- Sun visor (both sides)

- Cab trim (quarter panel) : Semi trim

- Instrument panel center cluster : Dark grey color

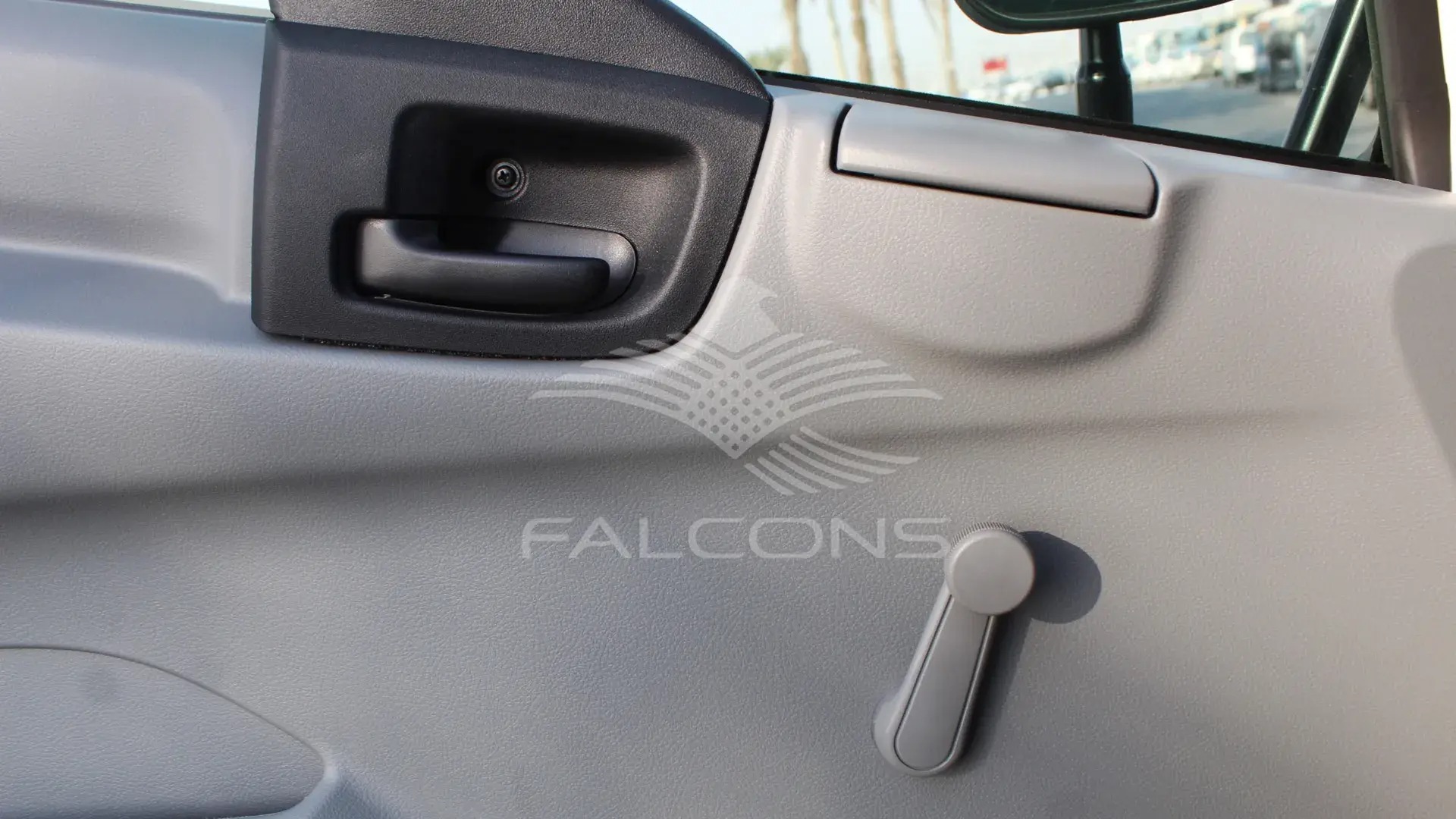

- Door pocket (both side)

- Seat back pocket (pocket for driver seat)

- Grab handle (interior) : Equipped (driver 1 + passenger 1)

- Outside rear view mirrors : Convex type, long stay

- Inside mirror

- Windshield wiper : 2-speed with wash and intermittent feature

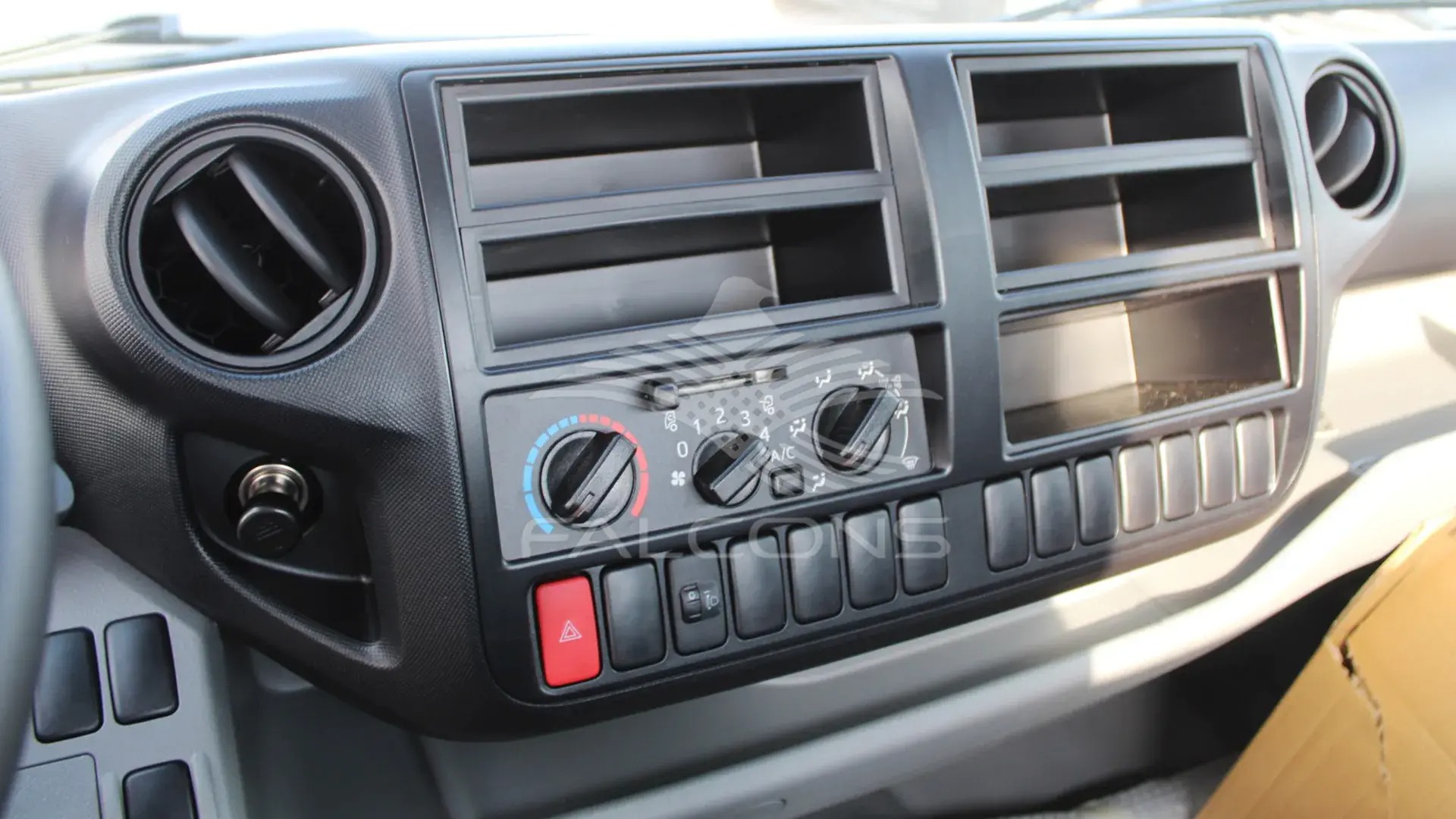

- Front heater and defroster (with warm up switch)

- Room light (reading light only)

- Door courtesy switch : Driver side

- Cigar lighter

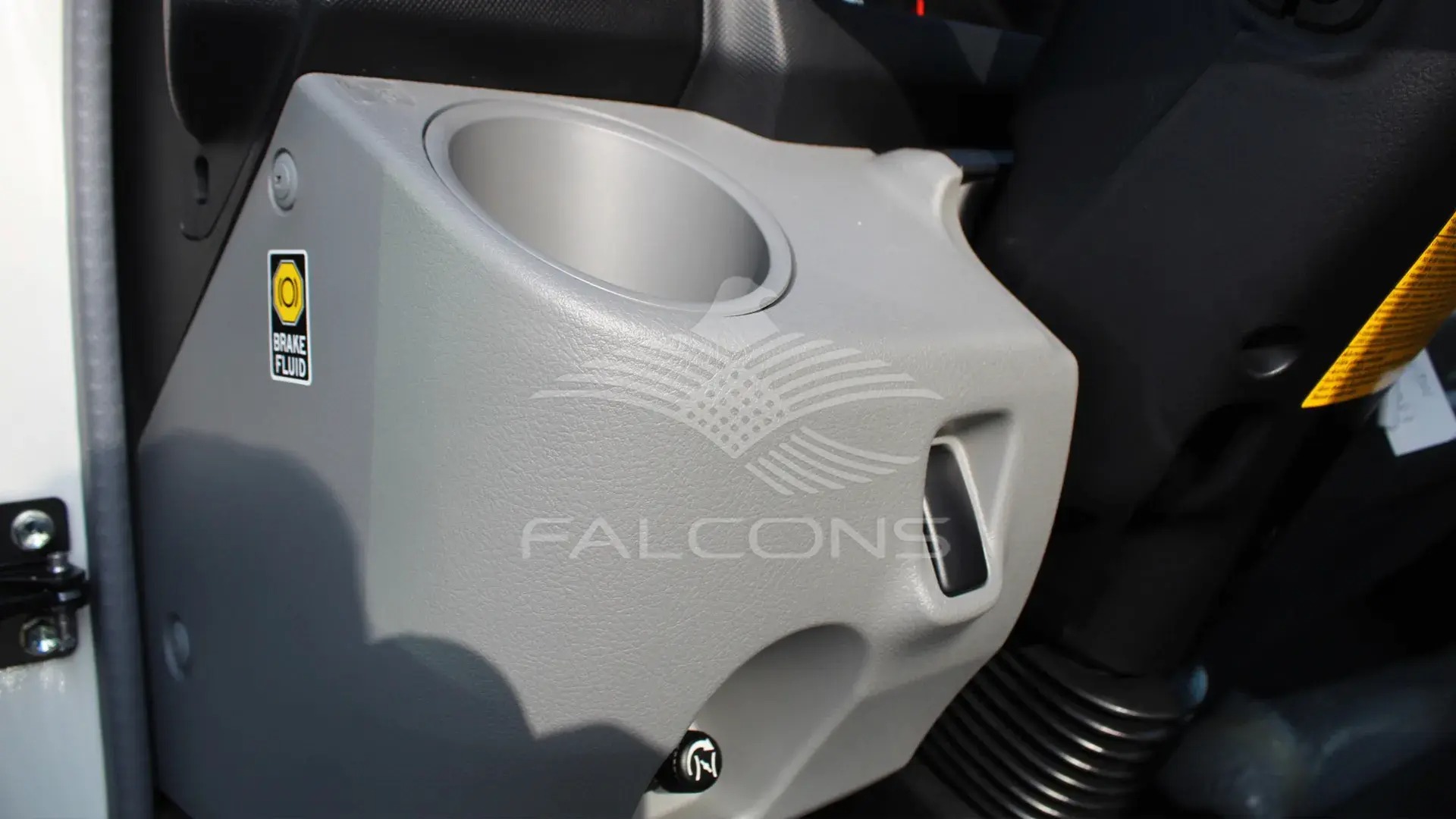

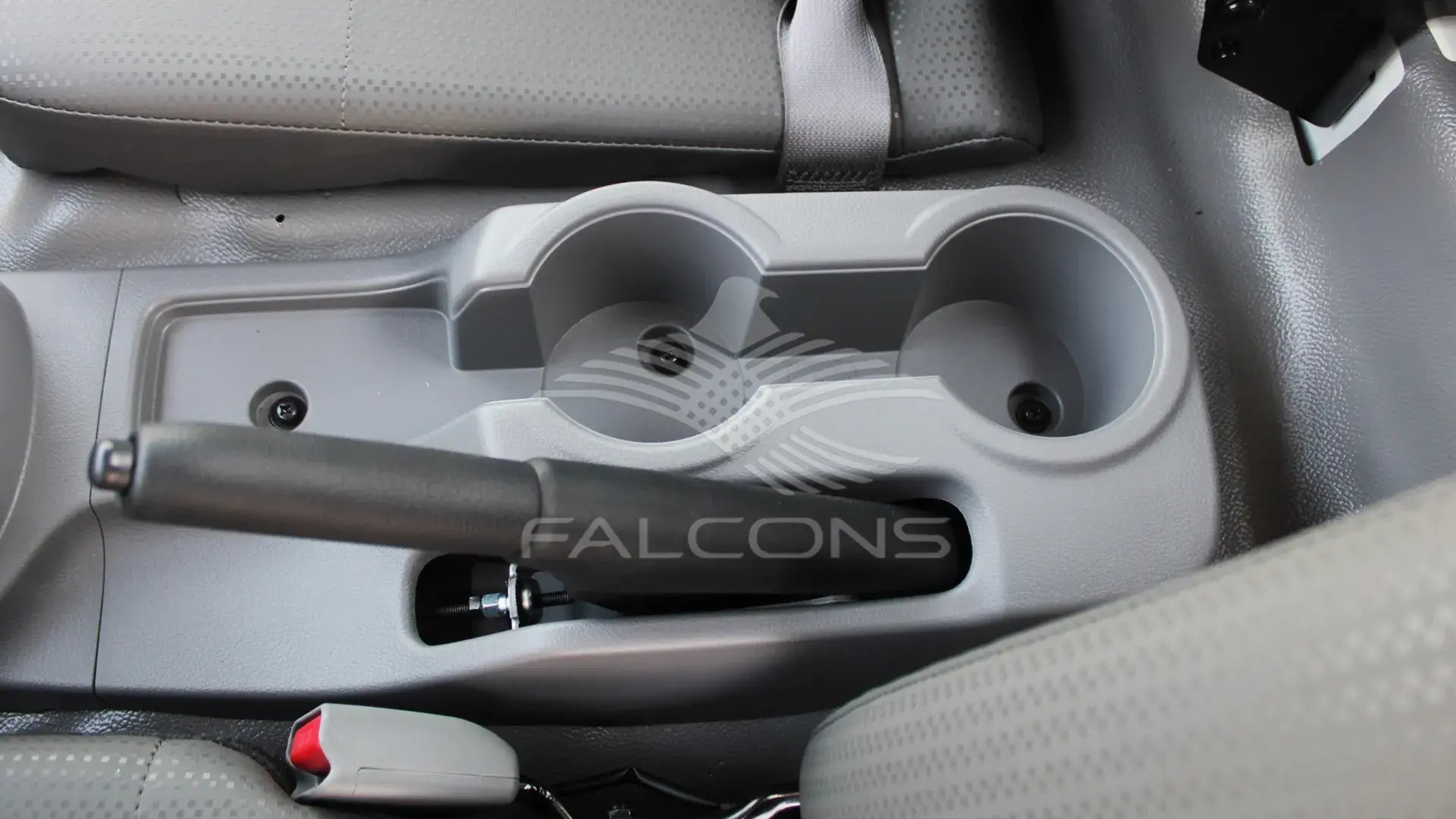

- Cup holder

- Tool set

- Hydraulic jack

- Radiator grille : Cab colored type

- Speedometer : Equipped (km/h)

- Multi-information : Equipped

- Tachometer : Equipped (r/min)

- Coolant temperature gauge : Equipped (with buzzer)

- Fuel gauge

- Brake warning : Brake fluid level and vacuum pressure warning lamp and buzzer

Exterior Features:

- Cab to axle center : 2,875

- Front overhang : 1,115

- Rear overhang (at frame end) : 1,575

- Front chassis height : 730

- Rear chassis height : 800

- Road clearance (at front axle) : 210

- Front tread : 1,655

- Rear tread : 1,520

- Turning radius on tire : 6,200

- Turning radius wall to wall : 6,900

- Gradeability tanθ (%) : 36.4

- Transmission gear ratio ( :1) : 1st (5.342), 2nd (2.975), 3rd (1.604) , 4th (1.000), 5th (0.712 ), Rev. (4.970)

- Rear axle : Gear ratio ( :1) : 5.571

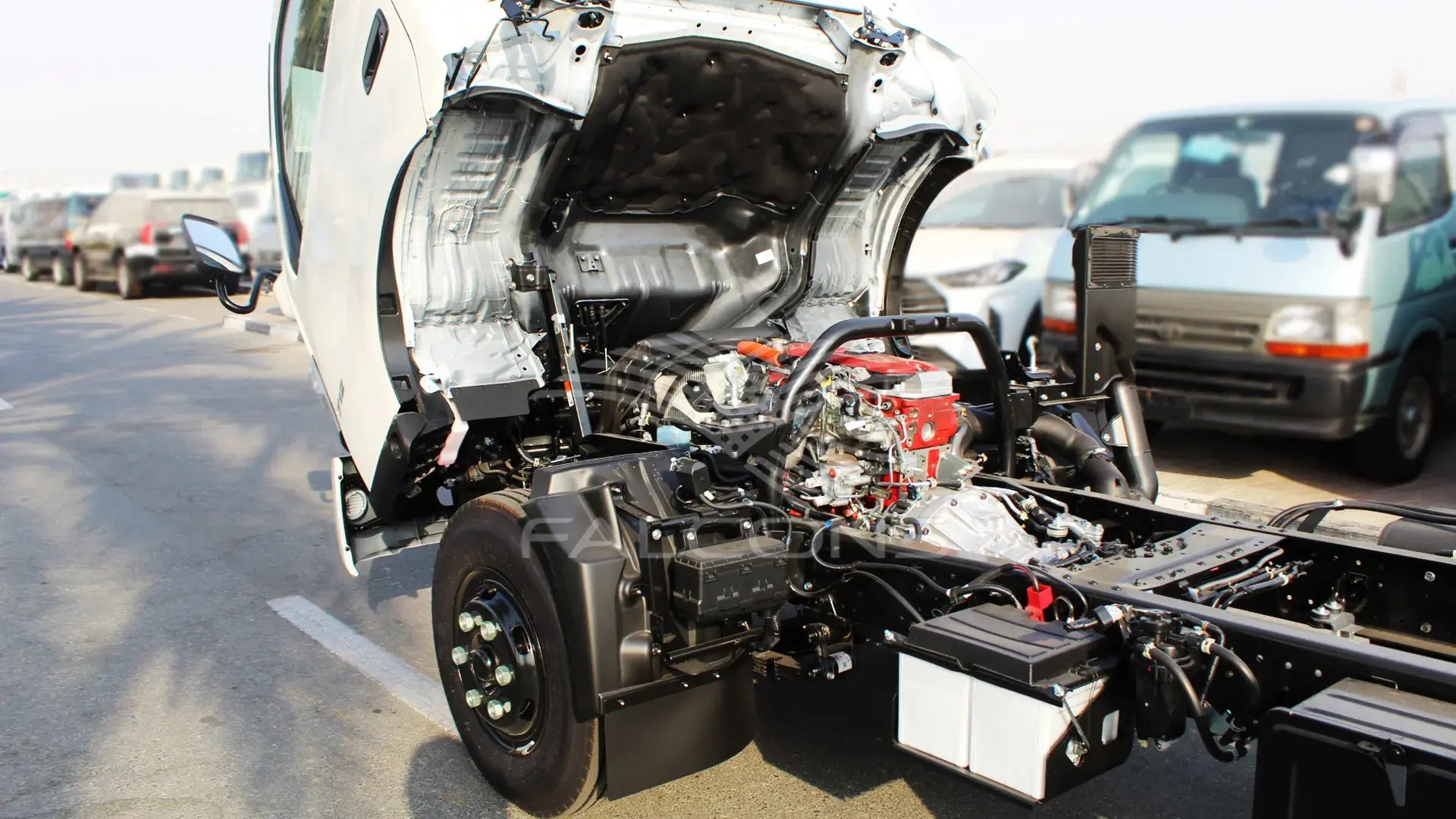

- Engine Type : Diesel, turbocharged and intercooled, 4-cycle, in-line 4-cylinder, overhead valve, water-cooled

- Combustion system : Compression Ignition, Four stroke

- Bore x Stroke : 104 x 118 mm

- Piston displacement : 4.009 L

- Compression ratio : 18.0 : 1

- Fuel injection pump : Electronic control common rail type with altitude compensation

- Air cleaner and intake : Behind cab mounted half-height snorkel air intake with air filter, dry paper element

- Exhaust tail : Short tail type

- Engine revolution control : Equipped (instrument panel mounted rotary knob type)

- Clutch Type : Dry single plate with damper springs, facing outside diameter 300 mm, automatic gap adjuster

- Transmission Model : RE50, manual 5-speeds, with overdrive

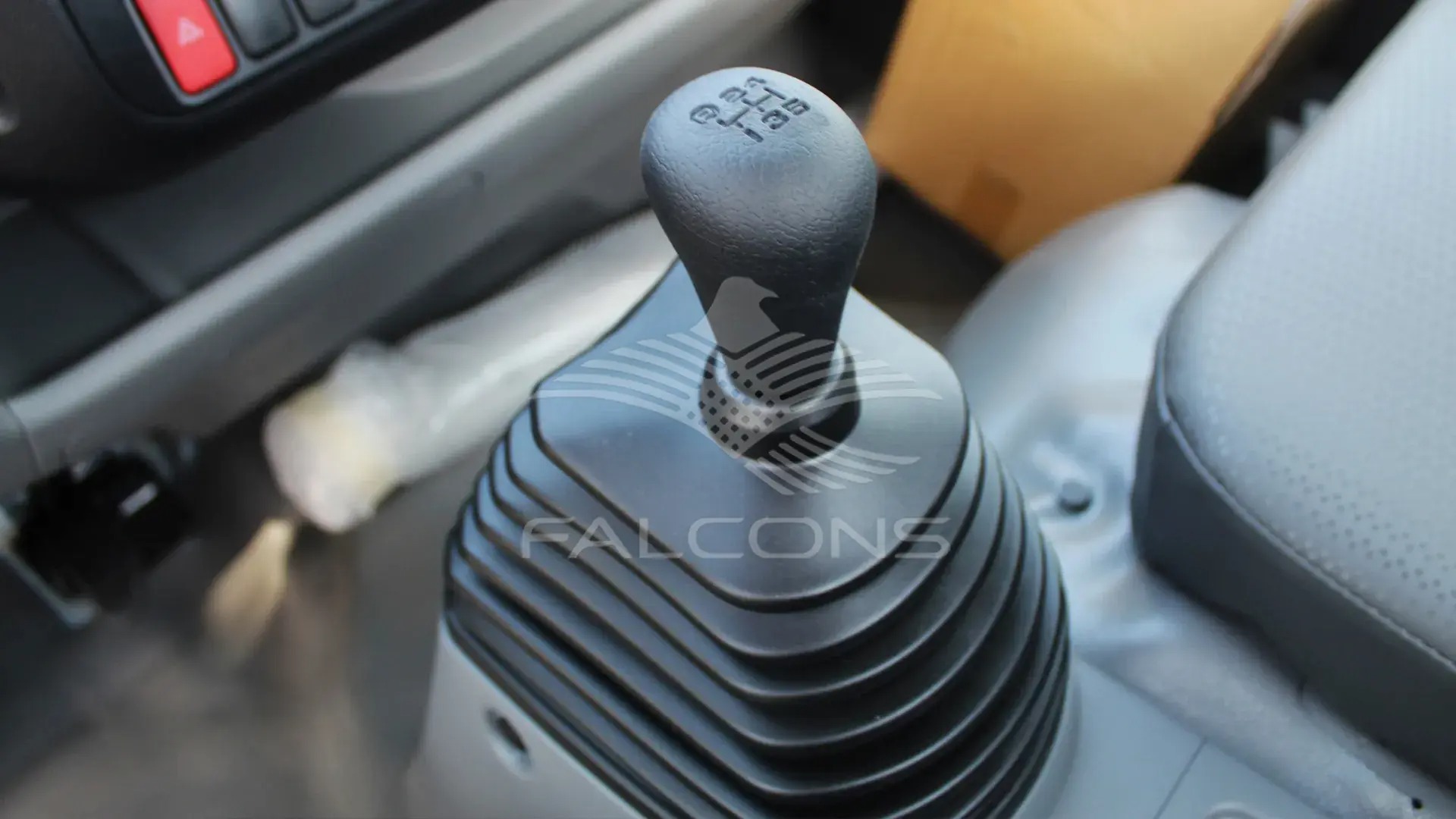

- Transmission shift lever : Folding type

- PROPELLER SHAFT : Tube outside diameter x thickness (82.6 x 2.3 mm)

- FRONT AXLE Type : Reversed Elliot, " I " section beam

- REAR AXLE Type : Full-floating, single reduction, single speed by hypoid gearings

- Front wheel brake : Drum inside diameter 320 mm, lining width 100 mm

- Rear wheel brake : Drum inside diameter 320 mm, lining width 115 mm

- Exhaust brake

- LSPV (load sensing proportional valve)

- PARKING BRAKE Type : Mechanical, internal expanding acting on transmission

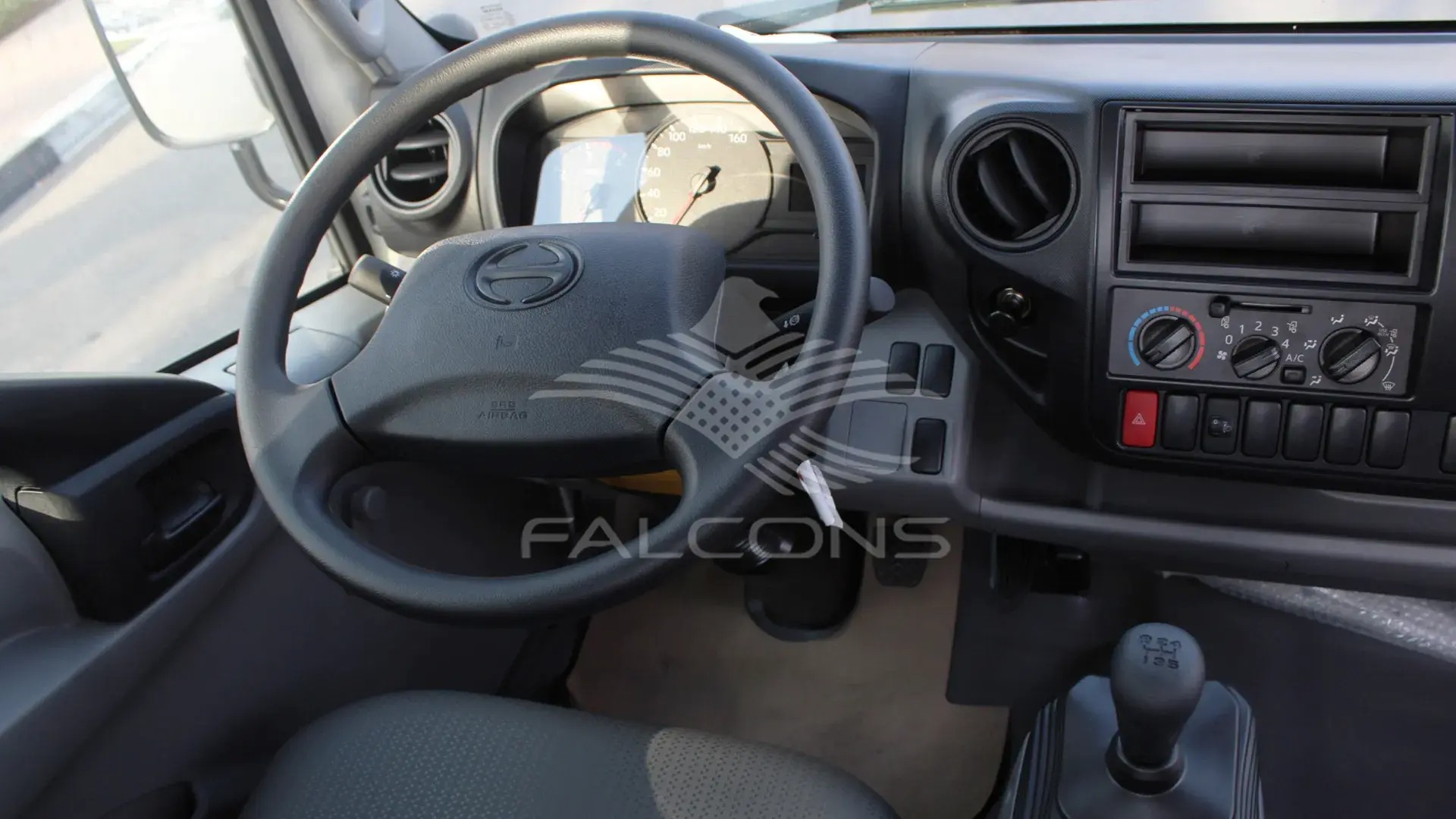

- STEERING Type : Telescopic and tilt steering column, recirculating ball integral power steering

- FRONT SUSPENSION Type : Semi-elliptic leaf springs with double acting shock absorbers

- REAR SUSPENSION Type : Semi-elliptic main and auxiliary leaf spring with double acting

- Wheel and tire

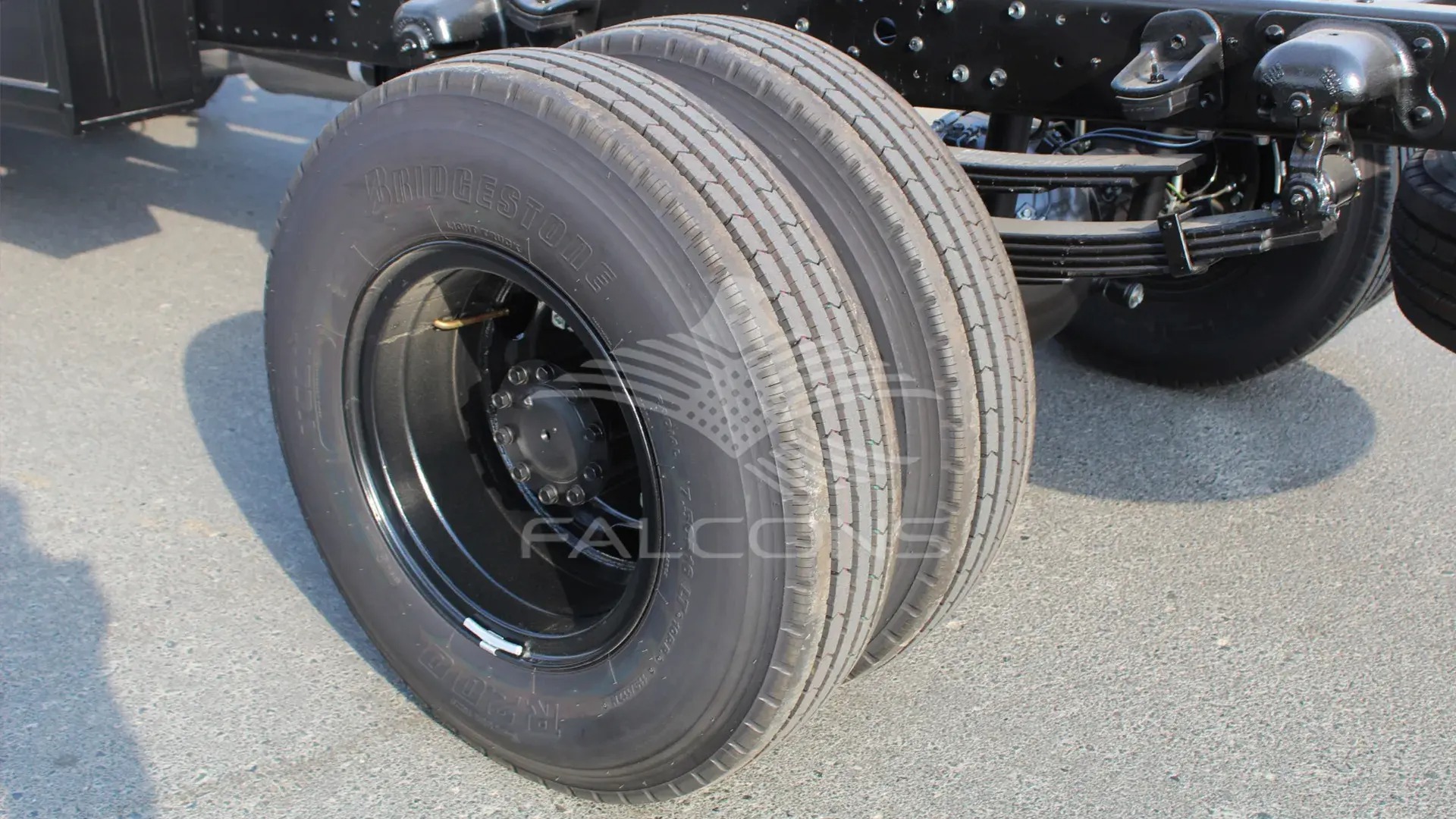

- Tire size : Front and rear : 7.50R16 10PR, rib type tread (16 x 6.00GS wheel)

- Fuel filter : Primary (with water separator) and secondary filter

- Fuel filler : Small-diameter neck

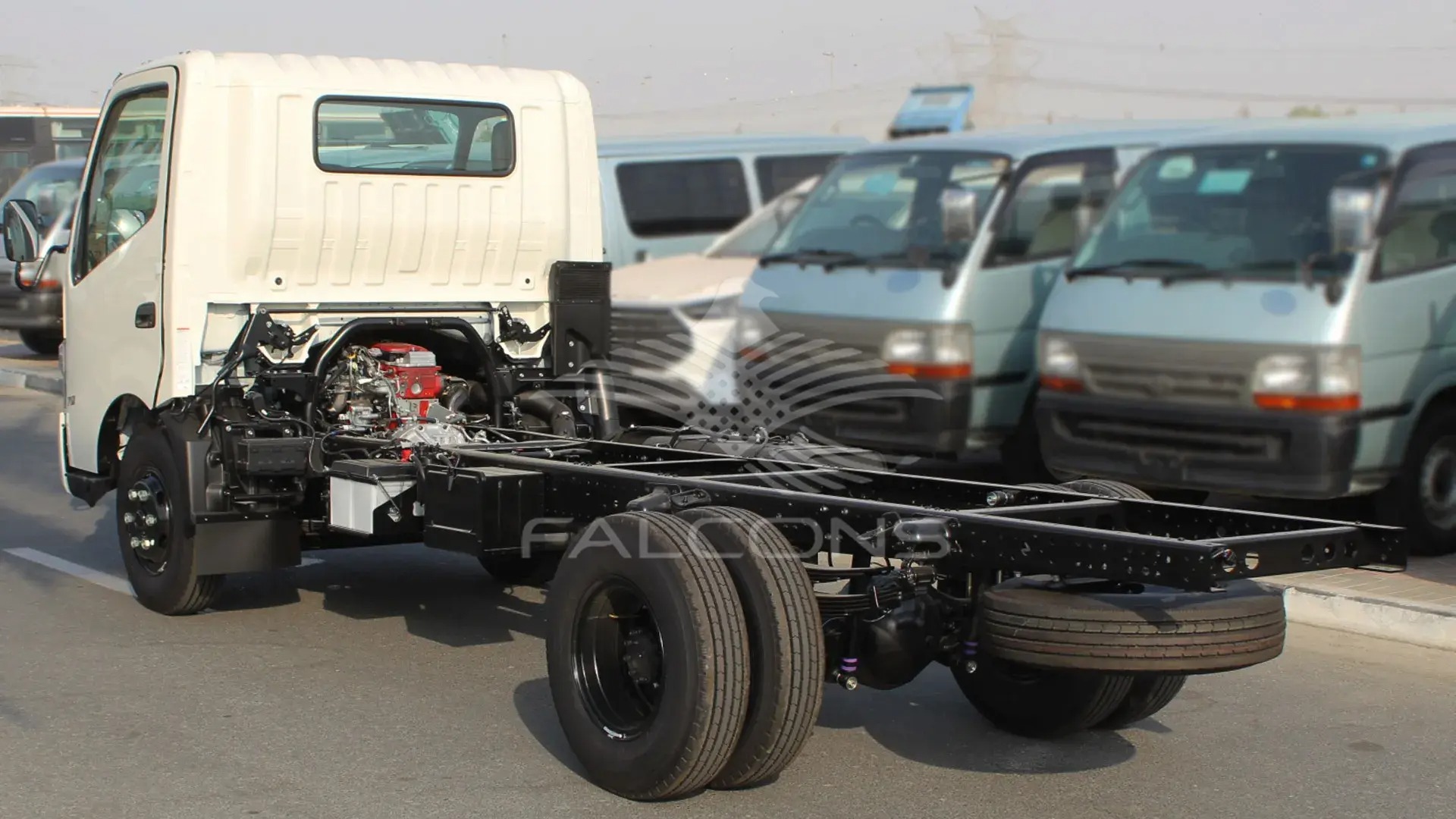

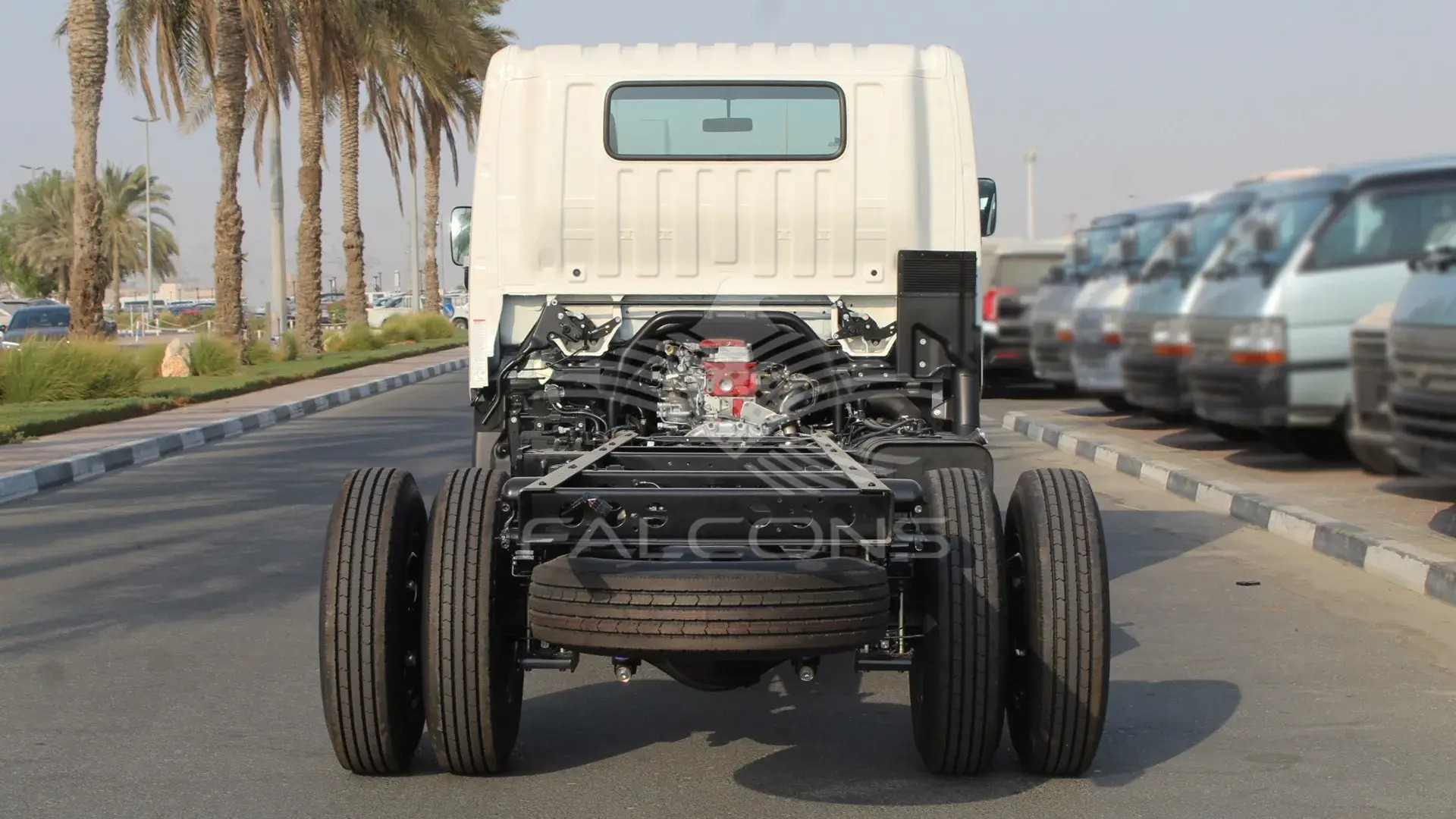

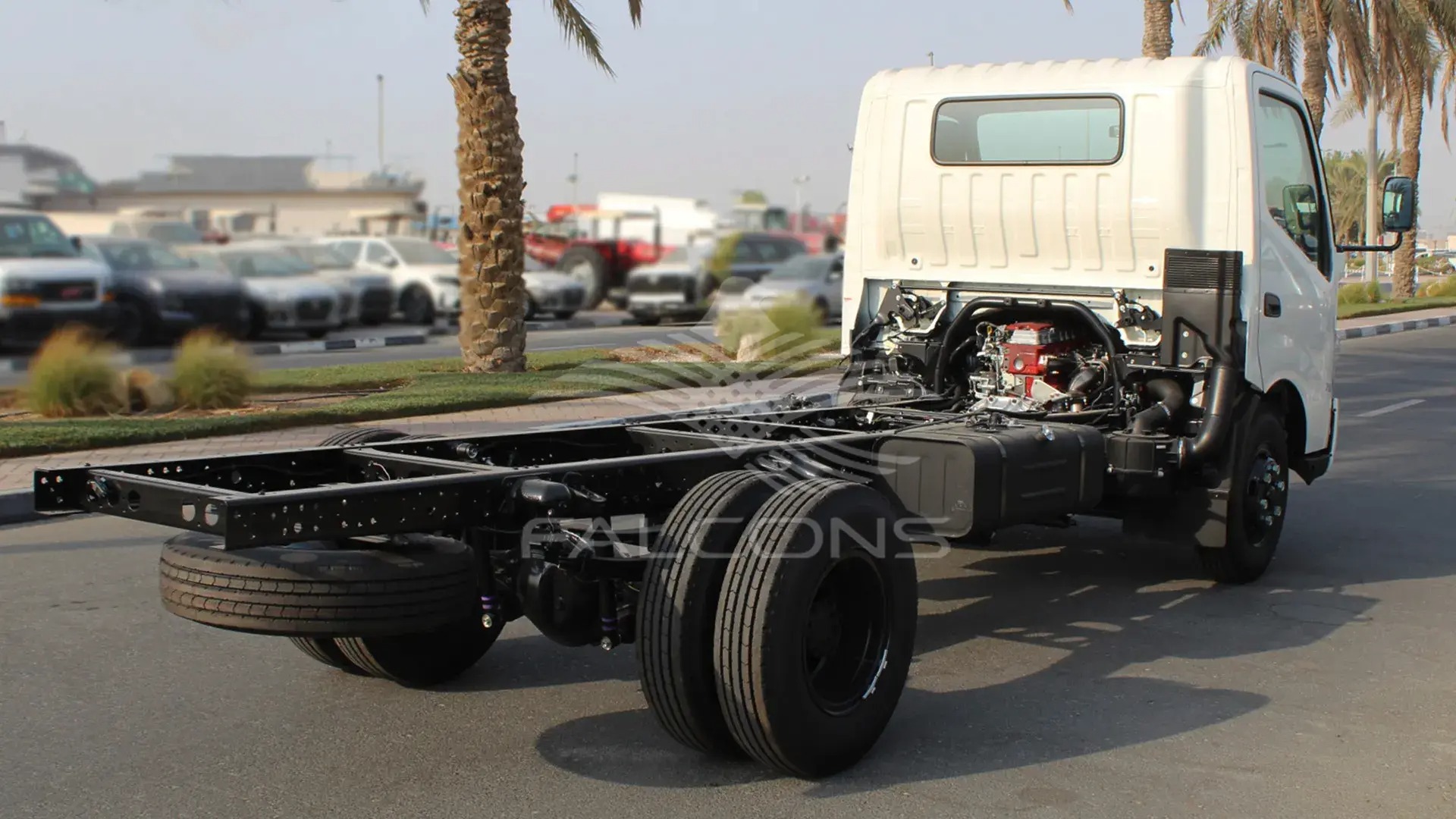

- CHASSIS FRAME Type : Ladder-shaped channel section side rails

- Front bumper : Dark grey type (resin)

- Front underrun protector

- Tow hook (front)
